Automotive Circuit Tester – X-Ray Tool for Electrical Shorts

This automotive circuit tester is designed to quickly locate electrical shorts, opens, and wiring faults in modern vehicles. Its flexible probe reaches into tight spaces, and non-contact technology eliminates the need for wire piercing, making diagnostics safer and faster. Ideal for both professional mechanics and DIY enthusiasts.

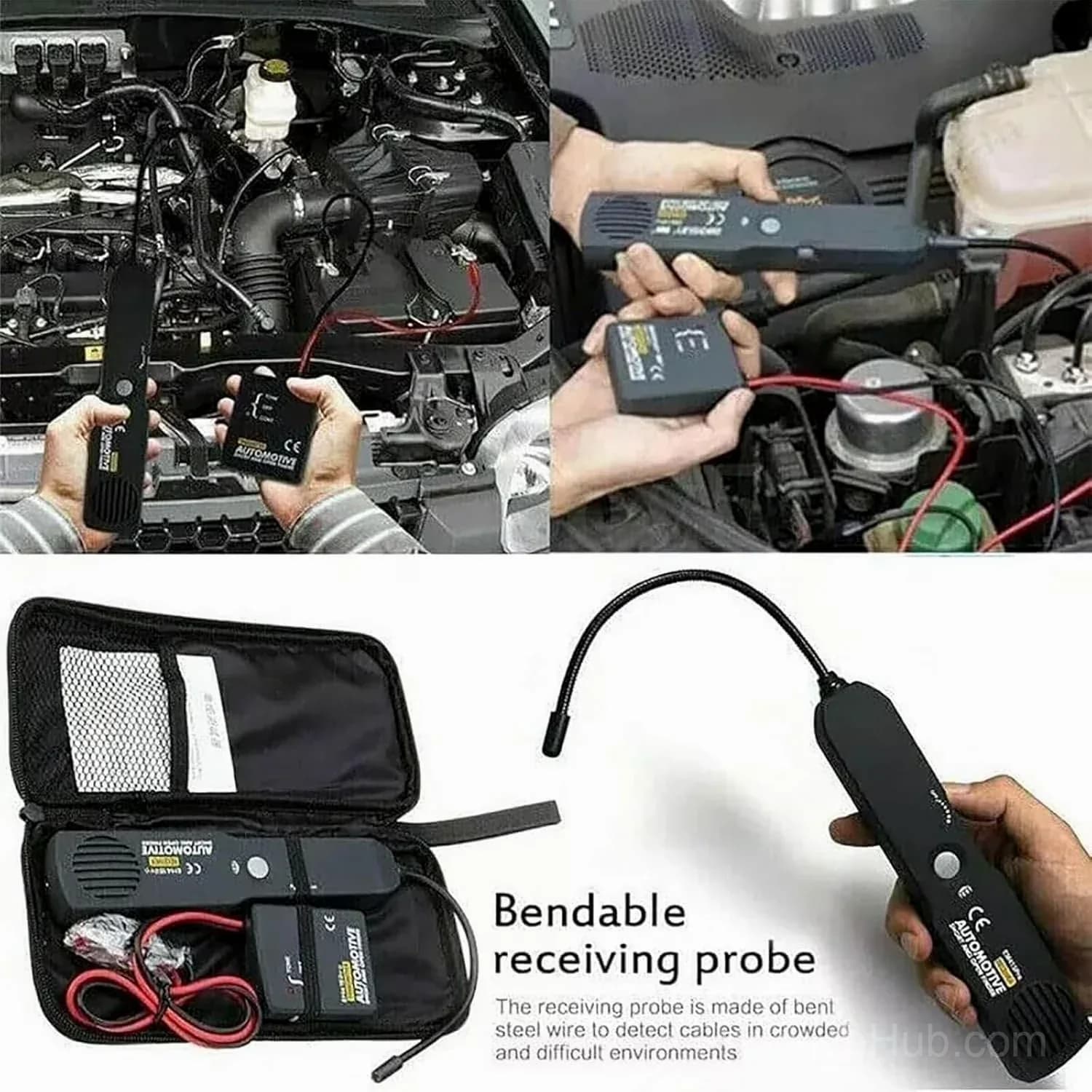

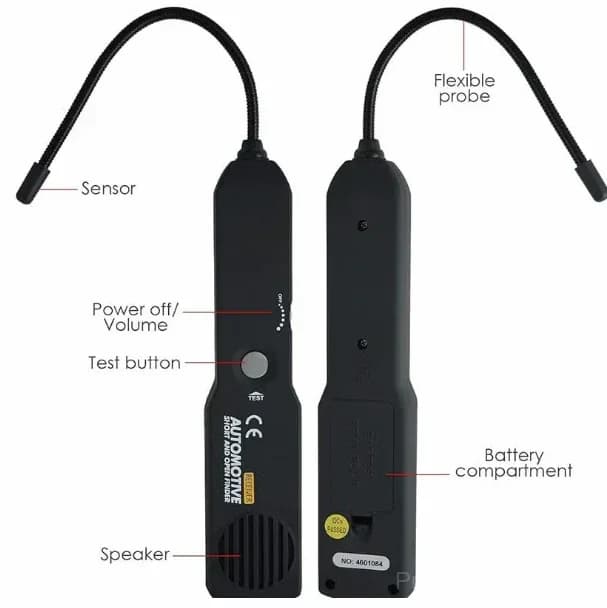

• Trace wires in bundles, conduits, and behind panels with the flexible probe
• Supports 6V to 42V DC systems, including mixed or single 42V setups
• Non-contact operation – no wire piercing required
• LED feedback indicates open or short circuits
• Built-in overload protection for durability

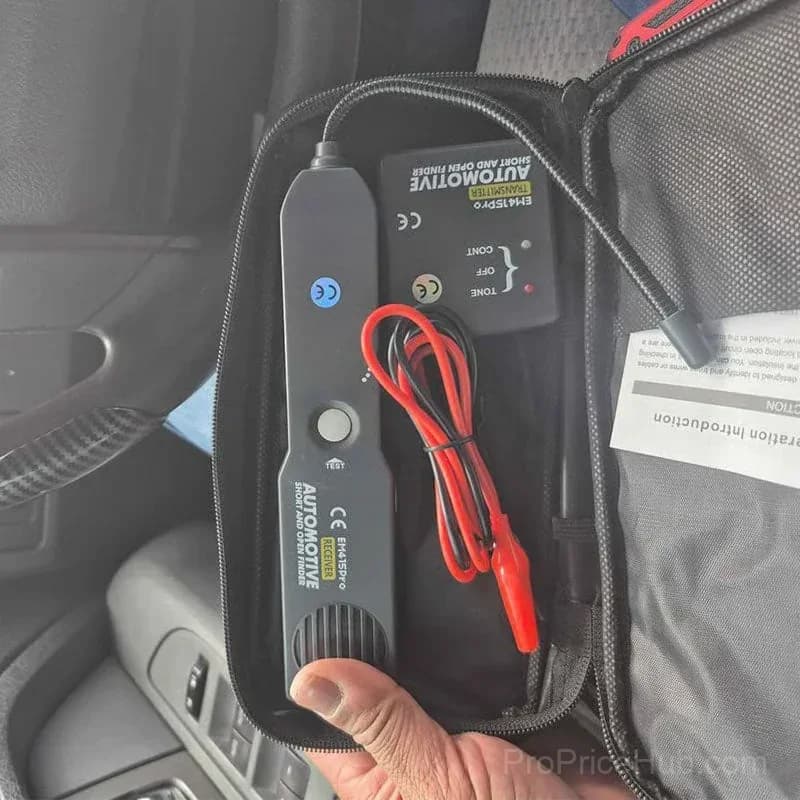

This kit is available in a single configuration. No additional options or variants are offered.

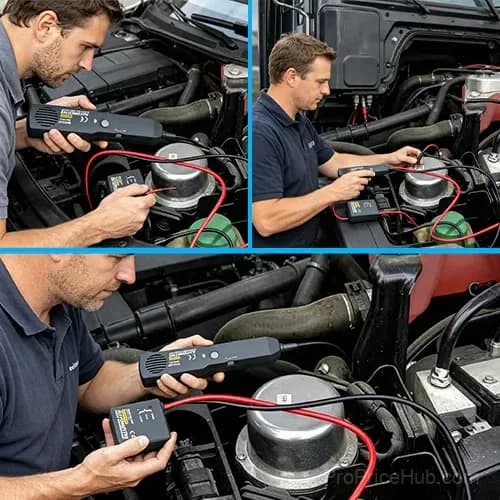

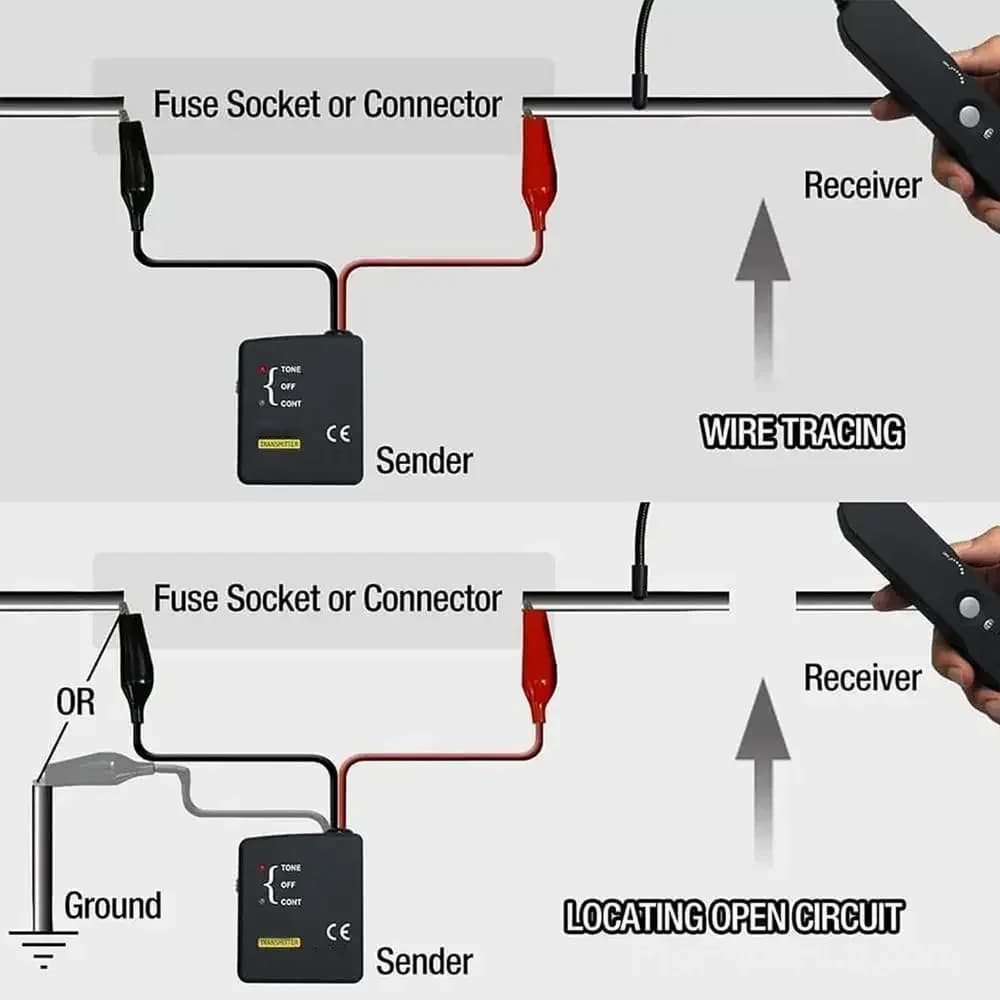

Connect the transmitter to the circuit under test. Scan along the wiring with the receiver’s probe – position the black tip perpendicular to the wire for optimal signal detection. The probe bends to access congested areas. A beep and LED indicate the location of the short or open circuit. No wire piercing required. Note: Batteries are not included; install user‑supplied batteries before use. Store in a dry place when not in use.
